1.0/2.3(CC4)系列射频同轴连接器
SERIES RF COAXIAL CONNECTORS

1.    0/2.3(CC4)型产品广泛用于小型化的无线电通讯设备,数字式配线装置,滑入机架,积木单元及各类数据监管系统.其特点是体积小、重量轻、连接方便、性能可靠、耐振动、抗冲击，有自锁装置。
1.0/2.3(CC4) type products apply to radio communication apparatus of miniaturization is digital to buy the line device extensively, Slipping into the framework, building blocks unit and all kinds of data supervise the system. Its characteristic is small, light, joins helping, performance is reliable, able to bear vibration, resists and is assaulted , Have lock device since.

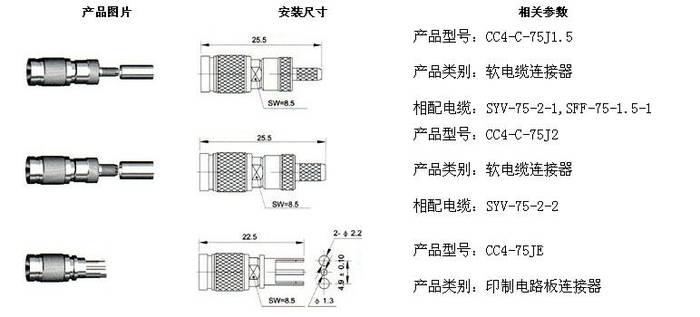

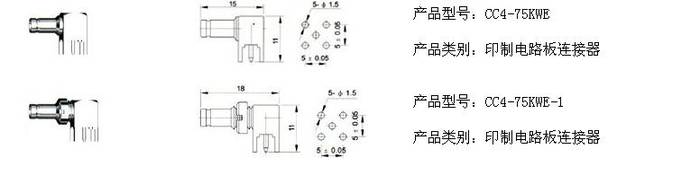

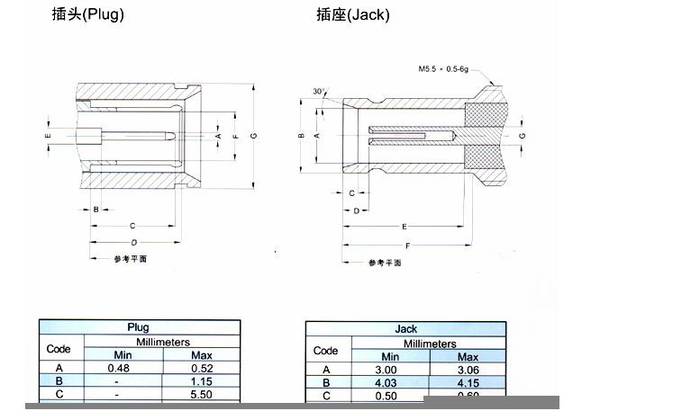

界面尺寸 INTERFACE MATING

ENSIONS
主要技术特性 TECHNICAL CHARACTERISTICS

温度范围 Temp.range -40°C～+85°C
振 动 Vibration 100m/s2 (10～500Hz)
特性阻抗 Impedance 50Ω,75Ω
频率范围 Frequency Range DC～4GHz (50Ω); DC～1GHz (75Ω)
工作电压 Working Voltage 350V max (有效值)
耐 压 Withstand Voltage 750V rms (海平面有效值)
接触电阻 Contact resistance
内导体之间 Center Contact ≤ 6 mΩ
外导体之间 Outer Contact ≤ 3 mΩ
绝缘电阻 Insulation resistance ≥ 1000 MΩ
电压驻波比 VSWR 直式 Straight ≤ 1.20
弯式 Right angle ≤ 1.22
耐用性 Durability(mating) ≥500次（cycles）

材料与涂覆 MATERIAL & PLATING
壳体 shell 黄铜 brass 镀镍或镀金 nickel or gold plated
插针 contact pin 黄铜 brass 镀硬金 gold plated
插孔 socket 铍青铜 beryllium 镀硬金 gold plated
弹性接触件elastic contact铍青铜或锡青铜beryllium or tin brass 镀硬金 gold plated
绝缘体 insulator 聚四氟乙烯 PTFE
压接套 crimping suite 铜合金 copper alloy 镀镍或镀金 nickel or gold plated
o型密封件o-ring sealing 硅橡胶 6146 silastic

适用技术标准 APPLICABLE STANDARD
CECC 22230;
DIN 47297.
