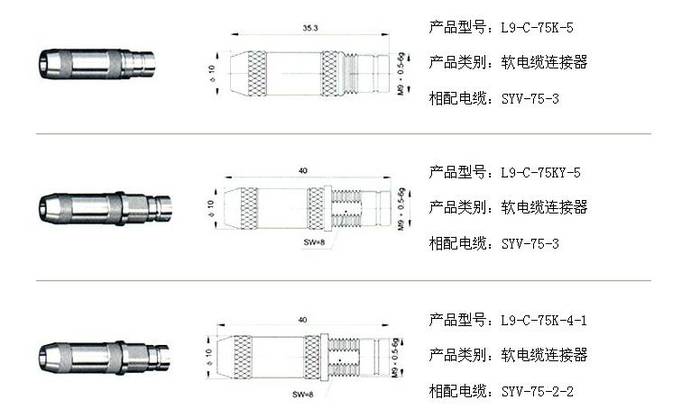

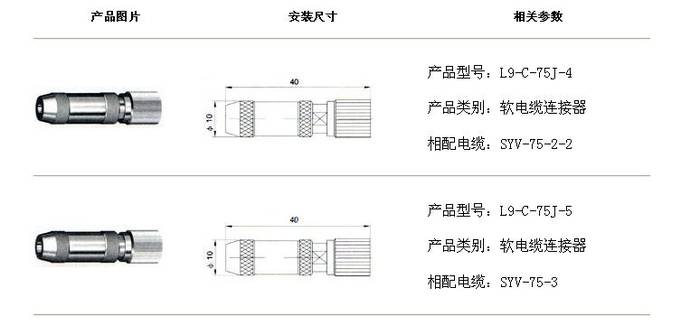

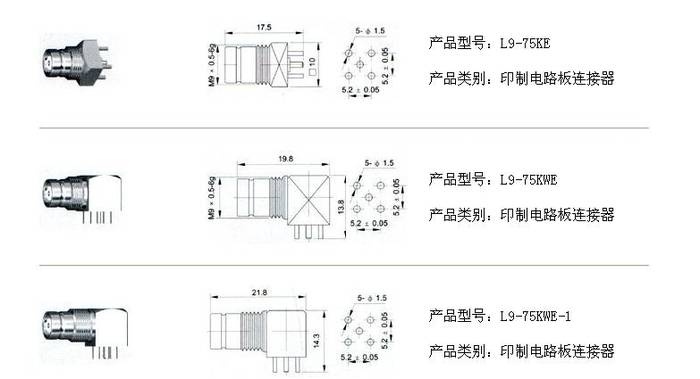

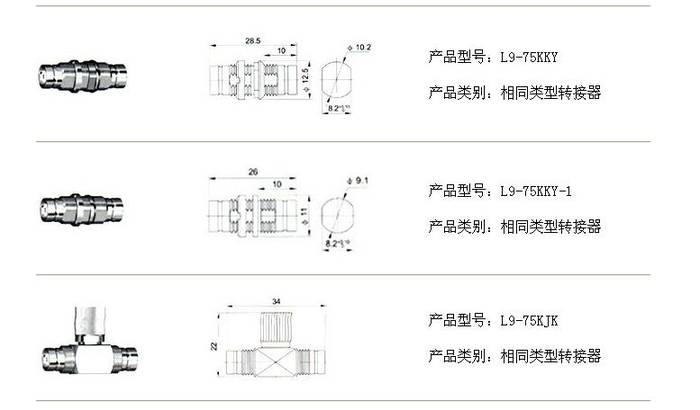

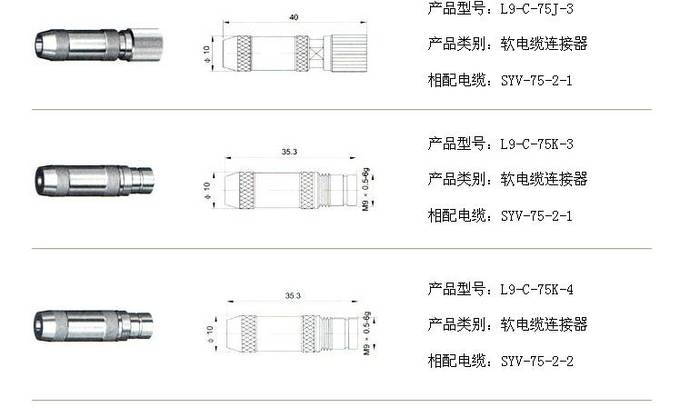

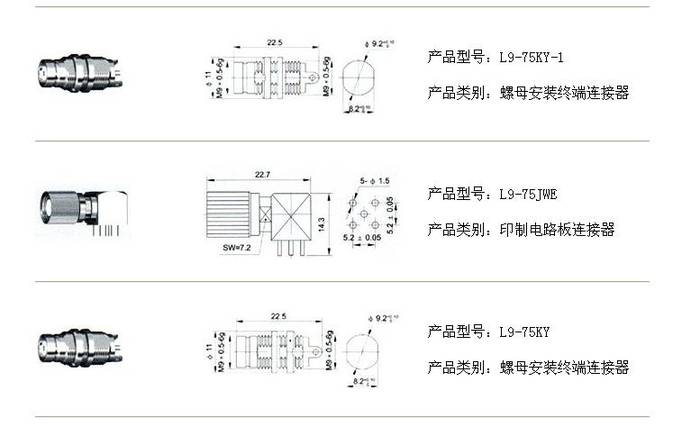

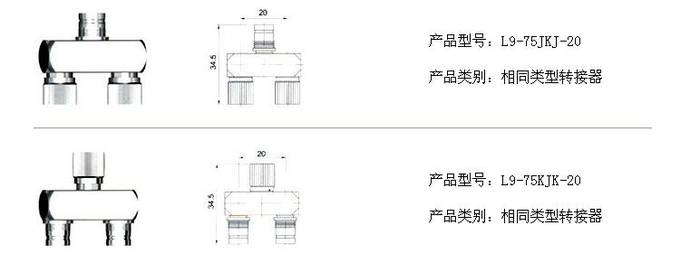

1.6/5.6(L9)系列射频同轴连接器
SERIES RF COAXIAL CONNECTORS

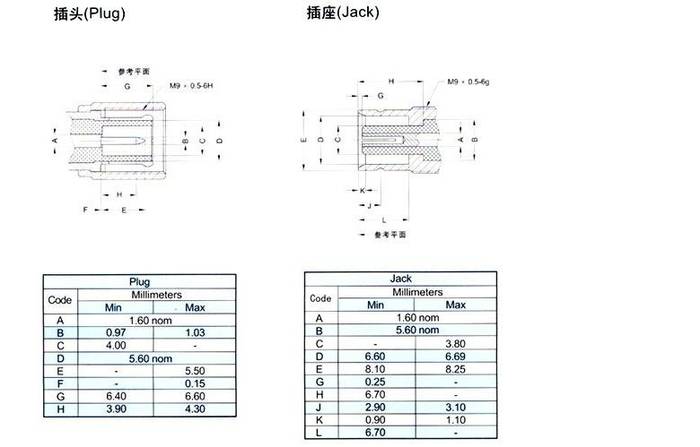

1.6/5.6(L9)型产品是一种具有螺纹、卡锁机构的连接器，它广泛应用于邮电通信设备、数字配线装置，无线电仪器等射频回路中连接射频同轴电缆用，并能与IEC60169-13规定的产品相互换。
1.6/5.6 type products whether one have whorl, card lock connection device of organization, it apply to post and telecommunications communication equipment, figure buy the line device extensively, The radio instrument waits until joining the coaxial cable of the radio frequency to use in the radio frequency return circuit, And can change each other with the products that IEC60169-13 stipulate.

主要技术特性 TECHNICAL CHARACTERISTICS
温度范围 Temp.range -40～+85°C
振 动 Vibration 100m/s2 (10～500Hz)
特性阻抗 Impedance 75Ω
频率范围 Frequency Range DC～1GHz
工作电压 Working Voltage 330V max (有效值)
耐 压 Withstand Voltage 1000V rms (海平面有效值)
接触电阻 Contact resistance
内导体之间 Center Contact ≤ 4 mΩ
外导体之间 Outer Contact ≤ 2 mΩ
绝缘电阻 Insulation resistance ≥ 10000 MΩ
耐用性 Durability(mating) ≥500次（cycles）

材料与涂覆 MATERIAL & PLATING
壳体 shell 黄铜 brass 镀亮镍 nickel plated
插针 contact pin 黄铜 brass 镀硬金 gold plated
插孔 socket 铍青铜 beryllium 镀硬金 gold plated
弹性接触件elastic contact铍青铜或锡青铜beryllium or tin brass镀硬金 gold plated
绝缘体 insulator 聚四氟乙烯 PTFE
压接套 crimping suite 铜合金 copper alloy 镀镍或镀金 nickel or gold plated
o型密封件 o-ring sealing 硅橡胶 6146 silastic

适用技术标准 APPLICABLE STANDARD
CECC 22240;
IEC 60169-13;
DIN 47295.
